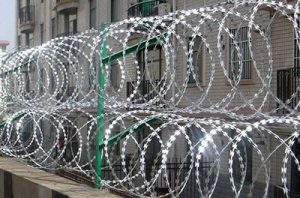

Razor Wire
The razor wire coils are an effective deterrent to climbing the fence, it adds a high anti-climb capacity to almost all fences.
High quality galvanized razor barbed wire is manufactured using a central core of high tensile wire – around which a tape of razor sharp barbs is machine crimped. The resulting razor wire is therefore exceedingly difficult to cut using hand tools.
High quality galvanized razor barbed wire is very strong and reinforced with a steel coil which makes it very hard to bend, while the barbs have a piercing and gripping action.
Razor Blade Specification
Razor Tape Wire Specification
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 8M | CBT-60,CBT-65 | Sing le Coil |
| 500mm | 41 | 10 M | CBT-60,CBT-65 | Sing le Coil |
| 700mm | 41 | 10 M | CBT-60,CBT-65 | Sing le Coil |
| 960mm | 53 | 13 M | CBT-60,CBT-65 | Sing le Coil |
| 450mm | 112 | 17 M | BTO10,BTO12,BTO18,BTO22,BTO28,BTO30 | Cross Type |
| 500mm | 102 | 16 M | BTO10,BTO12,BTO18,BTO22,BTO28,BTO30 | Cross Type |
| 600mm | 86 | 14 M | BTO10,BTO12,BTO18,BTO22,BTO28,BTO30 | Cross Type |
| 700mm | 72 | 12 M | BTO10,BTO12,BTO18,BTO22,BTO28,BTO30 | Cross Type |
| 800mm | 64 | 10 M | BTO10,BTO12,BTO18,BTO22,BTO28,BTO30 | Cross Type |
| 960mm | 52 | 9 M | BTO10,BTO12,BTO18,BTO22,BTO28,BTO30 | Cross Type |
Crossed Razor Barbed Wire
Two pieces of stainless razor wire or zinccoated razor wire were bounded together by clips to make,it more strength.
The spiral intersecting barbed wire presents an intersecing shape after opening with beautiful feature and practicality.
Single coil barbed Wire
Single coil barbed tape wire is installed without lips, it runs in natural loops on walls. Costless and can be easily installed.
Straight Razor Barbed Wire
There are many ways for straight type razor wire installing. The straight type razor wire can be installed quickly, it can not only save expenditure but also reach the result of frightening and stopping.
Razor Wire Mesh Fence
Welded razor mesh fence is a new form of razor bared wire mesh for security, it with practicality blade and the feature looks very beautiful. It can be used for guard net offence, doors and windows and alsocan be used in military. The specification can be designed as the customers’ need.
Barbed Wire
Suitable for agriculture farm, animal husbandry, plantation or fence, manufactured using high quality low carbon steel wire in galvanized or pvc coated or plastic coated.
Barbed wire Specification
| Name | Barbed wire Guage (BWG) | Barbed wire space(cm) | Barbed distance(cm) | |
| Hot dipped galvanized barbed wire | 10# x 12# | 7.5-15 | 1.5-3 | |
| Electrical Galvanized barbed wire | 12# x 12# | |||
| 12# x 14# | ||||
| 14# x 14# | ||||
| 14# x 16# | ||||
| 16# x 16# | ||||
| 16# x 18# | ||||
| PVC Barbed wire | Before painting | After painting | 7.5-15 | 1.5-3 |
| PE Barbed wire | 1.0mm-3.5mm | 1.4mm-4.0mm | ||
| BWG11#-20# | BWG8#-17# | |||
| SWG11#-20# | SWG8#-17# | |||
| Painting thickness for PVC & PE 0.4mm-0.6mm | ||||
