1m x 0.5m x 0.5m 4.0 mm Triple twinst weaving hexagonal woven gabion basket prices

Brand: CSTAR
Certificate: ISO9001
Origin: CHINA
MOQ: 100 Sets
Payment Terms: TT, LC
Supply Ability: 10000 Set/Sets per Month
Delivery Time: 15-20 Days
Packaging: Bundle or pallet or according to customer request

Description

Gabion basket
Gabion baskets (boxes) are made of Hexagonal Galvanized / PVC / Zinc coated /
Alu-zinc double twisted mild steel wire mesh.
Gabion baskets shall be supplied in various lengths, widths and heights. In order to Strengthen the baskets, all the edges of the structure shall be selvedged with wire of greater diameter.



River Gabion Mattresses
Gabion Mattress can be made of hexagonal double-twistered mild steel wire mesh.
Mattresses can be supplied in various length, widths and heights. The tolerance of mattresses’ dimentsions are +/-3% in length, +/-3% in width and +/-2.5cm in heigth.
In order to strengthen the mattresses, all the edges of the mattress are selvedged with a wire of greater diameter

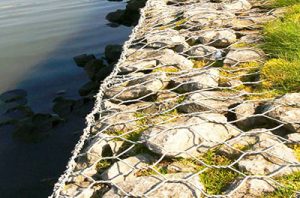

The river mattress is a structure made of hexagonal double twisted wire mesh. River mattresses are filled with stones at the project site to form flexible and permeable, monolithic structures such as river bank protection and channel linings for erosion control.
Surface treatment of gabion mattress: The woven steel wire used to manufacture the mattress is heavily zinc-coated soft temper steel.
1.Materials: hot dipped galvanized wire and PVC coated galvanized wire

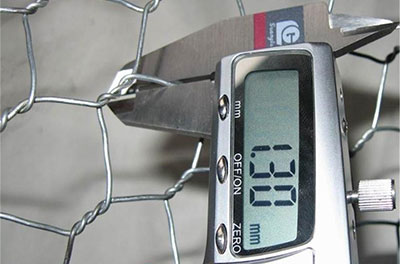

2.Mesh wire: 2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm
3.Selvedge wire diameter: 2.4mm,2.7mm,3mm,3.4mm,4mm
4.Mesh hole: 6*8cm,8*10cm,10*12cm,12*15cm
5.Tie wire/lacing wire: 2.2mm, 3%,5%,8% of weight
6.Zinc coated rate: 220-290g/m2
7.Size: 2x1x1m,2x1x0.5m,6x2x0.3m,as your request

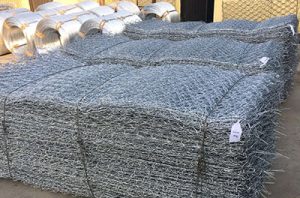

Gabion Cage

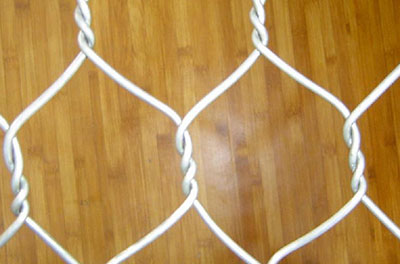

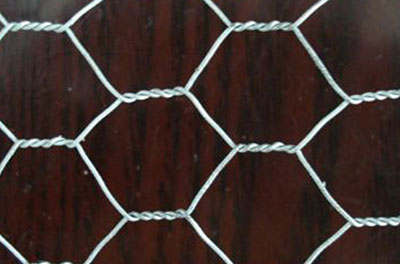

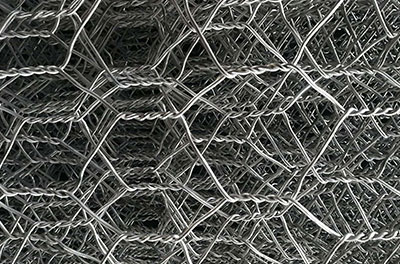

Gabion cages are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For hexagonal wire nettinng
with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges
from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thickner than the wire used for hexagonal wire netting
Features: Economic. Just fill the stone into the gabions and seeal it.
Simple installation, no special technology needed.
Weather proof under natural destroy, corrosion resistant
No collapse even under big scope of deforming
Sludge in the stones is good for plant growing, mixed to form a integrity with the natural environment.
Good permeaetion can be prevent the damage by hydrostatic.
Less transport freight. It can be folded together for transport and further installation.



Gabion cages applications:
● Water and soil protection
● Control and guide of water or flood
● Coast protection
● Flood bank or guiding
● Seaport engineering
● Bank preventing of rock breaking
● Strengthening structure of soil
● Bridge protection
● Protection of road
