10kgs 15kgs 20kgs 25kgs 50kg Hot dipped galvanized barbed wire mesh fencing

Brand: CSTAR
Certificate: ISO9001
Origin: CHINA
MOQ: 10 tons
Payment Terms: TT, LC
Supply Ability: 10 Tons/Day
Delivery Time: 15-20 Days
Packaging:
1.water-proof paper inside ,woven bag outside
2.compression rolls
3.in cartons
4.as customer request

Category:

Description

Razor Wire
The razor wire coils are an effective deterrent to climbing the fence, it adds a high anti-climb capacity to almost all fences.
High quality galvanized razor barbed wire is manufactured using a central core of high tensile wire – around which a tape of razor sharp barbs is machine crimped. The resulting razor wire is therefore exceedingly difficult to cut using hand tools.
High quality galvanized razor barbed wire is very strong and reinforced with a steel coil which makes it very hard to bend, while the barbs have a piercing and gripping action.



Razor Blade Specification
Razor Tape Wire Specification
Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 8M CBT-60,CBT-65 Sing le Coil
500mm 41 10 M CBT-60,CBT-65 Sing le Coil
700mm 41 10 M CBT-60,CBT-65 Sing le Coil
960mm 53 13 M CBT-60,CBT-65 Sing le Coil
450mm 112 17 M BTO10,BTO12,BTO18,BTO22,BTO28,BTO30 Cross Type
500mm 102 16 M BTO10,BTO12,BTO18,BTO22,BTO28,BTO30 Cross Type
600mm 86 14 M BTO10,BTO12,BTO18,BTO22,BTO28,BTO30 Cross Type
700mm 72 12 M BTO10,BTO12,BTO18,BTO22,BTO28,BTO30 Cross Type
800mm 64 10 M BTO10,BTO12,BTO18,BTO22,BTO28,BTO30 Cross Type
960mm 52 9 M BTO10,BTO12,BTO18,BTO22,BTO28,BTO30 Cross Type
Crossed Razor Barbed Wire
Two pieces of stainless razor wire or zinccoated razor wire were bounded together by clips to make,it more strength.
The spiral intersecting barbed wire presents an intersecing shape after opening with beautiful feature and practicality.



Single coil barbed Wire
Single coil barbed tape wire is installed without lips, it runs in natural loops on walls. Costless and can be easily installed.



Straight Razor Barbed Wire
There are many ways for straight type razor wire installing. The straight type razor wire can be installed quickly, it can not only save expenditure but also reach the result of frightening and stopping.



Razor Wire Mesh Fence
Welded razor mesh fence is a new form of razor bared wire mesh for security, it with practicality blade and the feature looks very beautiful. It can be used for guard net offence, doors and windows and alsocan be used in military. The specification can be designed as the customers’ need.

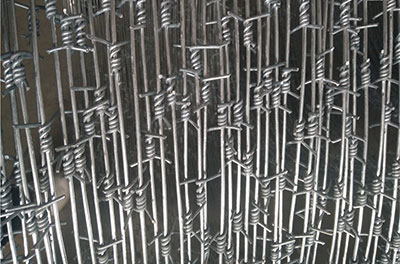

Barbed Wire
Suitable for agriculture farm, animal husbandry, plantation or fence, manufactured using high quality low carbon steel wire in galvanized or pvc coated or plastic coated.



Barbed wire Specification
Name Barbed wire Guage (BWG) Barbed wire space (cm) Barbed distance (cm)
Hot dipped galvanized barbed wire 10# x 12# 7.5-15 1.5-3
Electrical Galvanized barbed wire 12# x 12#
12# x 14#
14# x 14#
14# x 16#
16# x 16#
16# x 18#
PVC Barbed wire Before painting After painting 7.5-15 1.5-3
PE Barbed wire 1.0mm-3.5mm 1.4mm-4.0mm
BWG11#-20# BWG8#-17#
SWG11#-20# SWG8#-17#
 Painting thickness for PVC & PE 0.4mm-0.6mm
